Cat & Mouse Level Gauge

Call For Price 01778 562810



  • CR System is compatible with standard 40mm PVC pipe and fittings
  • Solvent weld connections for easy and quick installation
  • Supplied as a system in kit form
  • Designed and manufactured to a high standard using chemical resistant polymers offering good chemical compatibility
  • Can be installed to any flat top vertical tank up to 5 metres in height
  • Low maintenance
  • Mechanically operated, so no need for an electrical supply

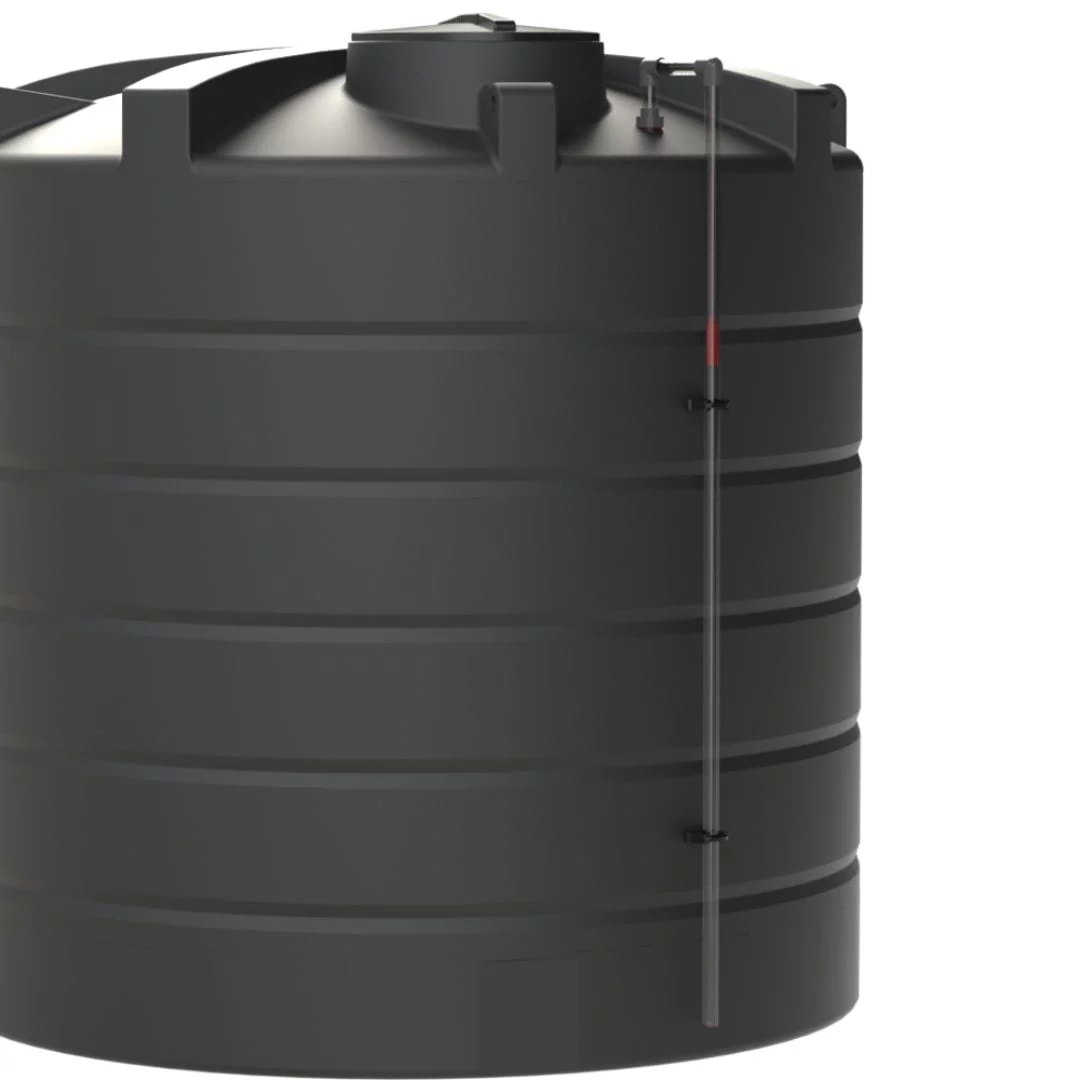

Cat & Mouse Level Gauge

Our cat & mouse level gauge is designed for process and chemical storage tank applications.

This gauge is a simple, reliable system using a ball float which is connected to a Polypropylene cord, an external pulley system and a Tank Level Indicator/counterweight,which is housed in a clear PVC pipe for accurate tank monitoring.

The Cat & Mouse Level Gauge System includes:

  • 2 x 90 degree pulley elbows
  • 2 x pipe unions
  • 1 x 150mm diameter ball float
  • 1 x PVC counterweight with built-in magnet
  • 1 x 40mm tank connector, and 7 metres of 3mm Polypropylene chemical resistant cord (for vertical tanks up to 4 metres tall)
