Water Level Gauge

£35.00£45.00 exc. VAT (inc. VAT £42.00) (-22%)

Available

  • Adjustable for tank height 100 – 270cm

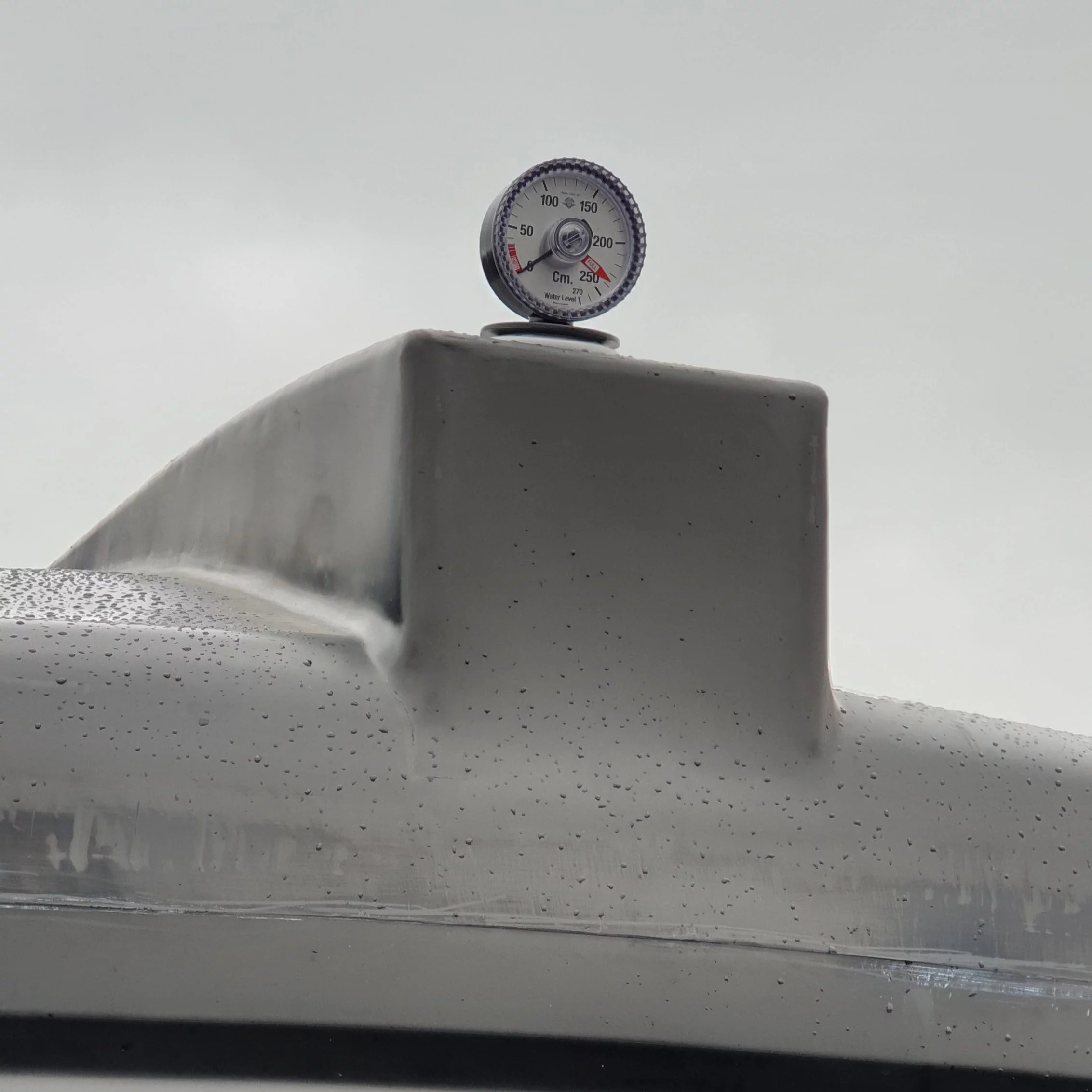

  • Quality Level Gauge for Rain Water Tanks. Intended for outdoor use on stationary open vented tanks. UV-resistant and pressure-tight meter head
  • Flange mounting and 1 1/2” BSP connection

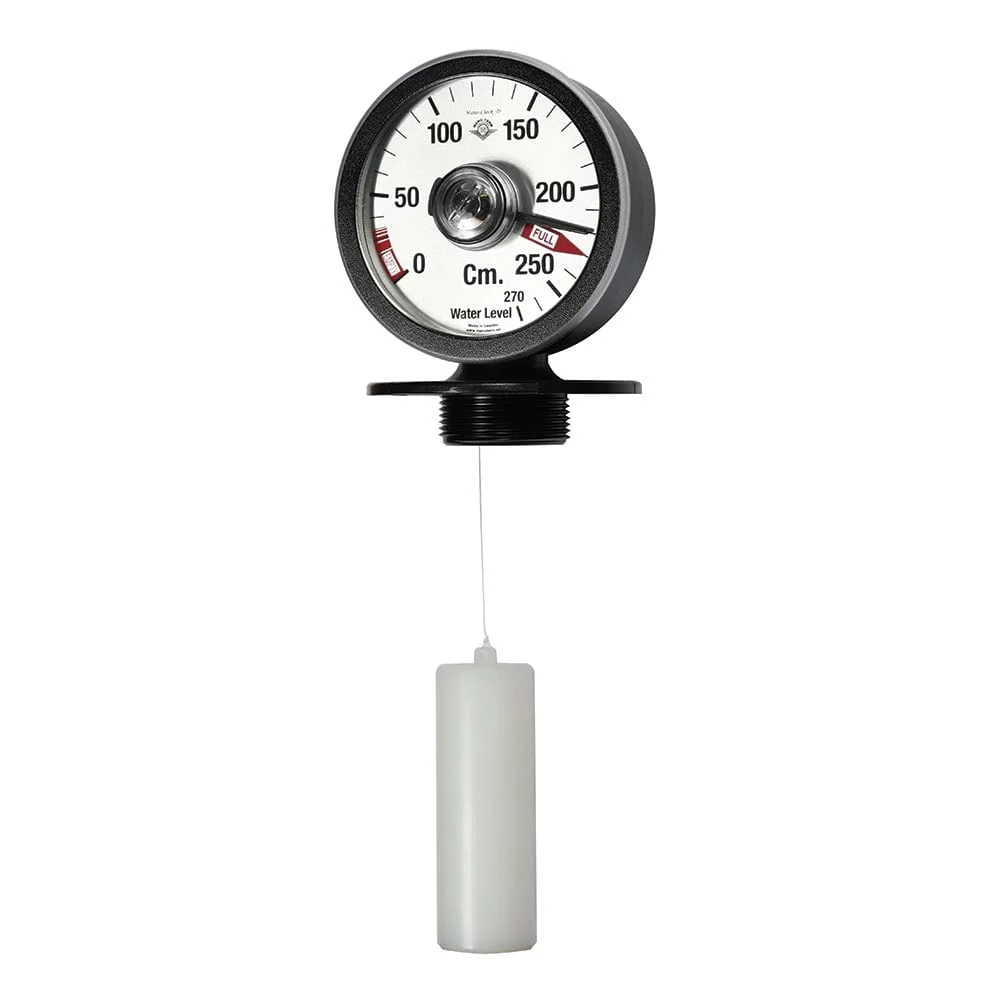

Water Level Gauge Diagram

The movements of the floater are transmitted by a high grade line to the measuring mechanism inside the meter head. The measuring mechanism consists of a spring-loaded winding drum controlling the pointer needle via a gear drive.

  • Meter head ø 110mm in high quality UV-resistant plastic
  • Pressure-tight meter head
  • Corrosion-resistant measuring mechanism in acetal plastic and spring motor made of stainless steel
  • Durable float of solid polyethylene.
  • Can be easily adjusted to the desired tank height by using a screwdriver
  • Mounts with ø100mm mounting flange (4 self tapping screws and gasket included) or 1 1/2” BSP connection
  • Meter head operating temperature range: -30/+50°C
  • Graduated in cm
  • Measuring accuracy: ±3% of full scale value
