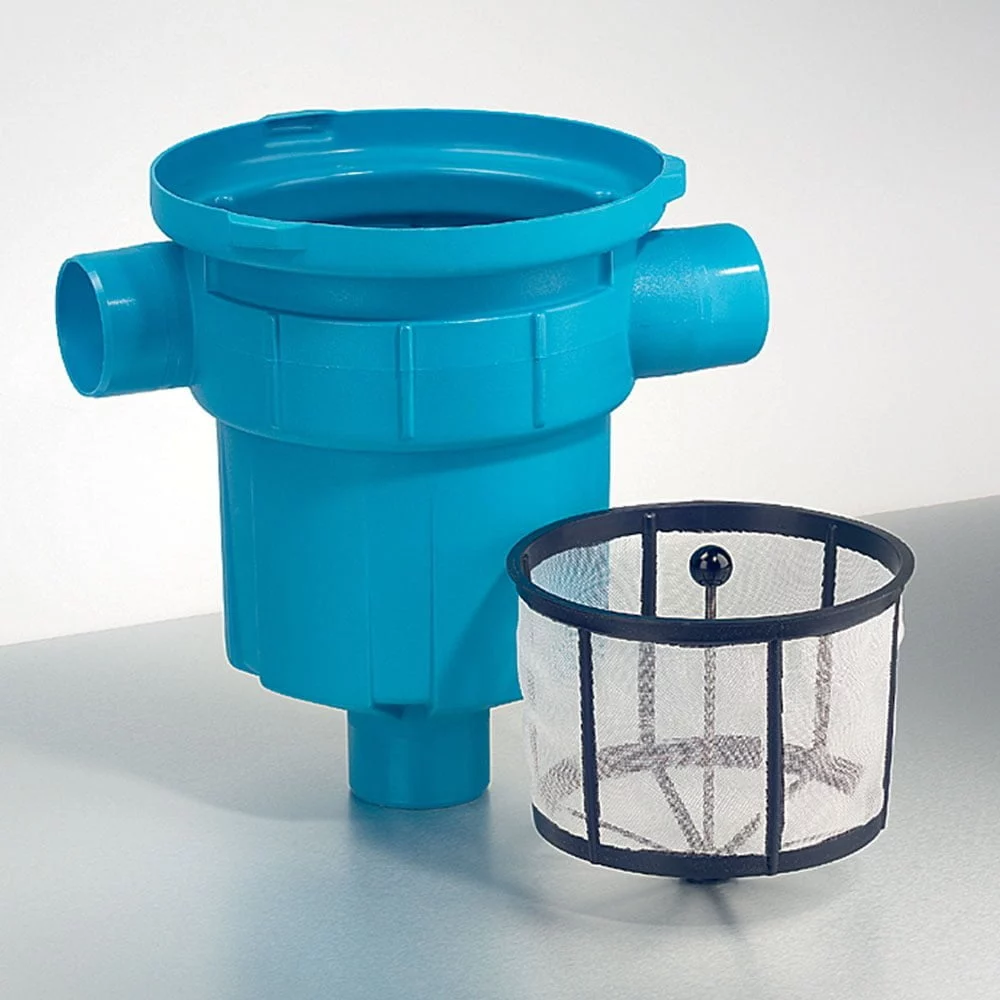

200m2 Garden Rainwater Filter

£183.00 exc. VAT (inc. VAT £219.60)

Available

200m2 Garden Rainwater Filter Specification

  • A total retention rainwater filter with integrated dirt collecting basket
  • Easily removable filter basket
  • For installation inside a rainwater tank
  • Suitable for garden watering
  • Ideal where no sewer connection exists
  • Designed for roof sizes up to a maximum of 200 sq metres
  • Unit weight 2.2 kg
SKU: 252010 Categories: ,

200m2 Garden Rainwater Filter

A total retention rainwater filter with integrated dirt collecting basket at mesh width of 1 mm. Easily remove the filter basket with the removal handle.

For installation in a rainwater tank or turret, or before an in-ground tank using the a Telescopic Extension Set with lid. This filter is highly suitable for garden watering systems and is ideal where no connection to a sewer is possible, or where water is infiltrated.

All inlets and outlets at DN 100 (110mm OD), one inlet can also be used as an emergency overflow. The cleaned rainwater flows through the bottom connection into the rainwater tank. Also a calmed inlet is recommended.

Connection capacity for roof areas up to 200 m².

The cleaned water can be used for garden watering.

The filter should be cleaned several times during the year, depending on the solid loadings.

How it works

  1. Rainwater flows onto the filter cartridge.
  2. The dirt is retained in the dirt collecting basket. The basket has to be cleaned when necessary.
  3. One inlet can also be used as an emergency overflow.
  4. Cleaned water flows over the bottom into the rainwater tank.
  5. Use of a calmed inlet is recommended.
